Product Description
Our modern infrastructure equipped with advanced equipment, helps us to manufacture and supply Phase Control Relays. These relays are used in conveyors, pumps, generators, lifts, motor and hoists. To manufacture these relays, our skilled manpower uses quality grade materials and components. These relays come in different sizes and specifications as per the requirements of clients. Before offering to clients, we check these Phase Control Relays on defined quality parameters.
Features:
- Compact design
- Light in weight
- Easy to install

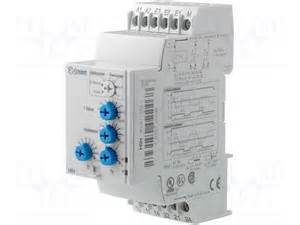

Phase control relays
(MWS, MWS2, MWG, MWU, MWA,MWUA, HWUA, H3US, H3USN, M3US) :
Presence and regeneration,Phase sequence,Phase balance and level of asymmetry (or balance)
APPLICATION:
- Supervision of motors, lifts, hoists,
- conveyor belts, packaging and air
- extraction, pumping... from standard
- products to bespoke products,
- C-Lynx control relays adapt to a
- multitude of applications, to meet all
- your requirements.
Advanced Protection for EquipmentThis relay offers comprehensive phase protection for three-phase systems, making it ideal for motors, pumps, and sensitive devices. By monitoring voltage levels and phase sequence, it prevents damage caused by phase faults and ensures smooth, automatic operation in industrial applications.
User-Friendly FeaturesEquipped with LED indicators for output and fault status, the relay allows for quick visual diagnostics. The adjustable time delay and microcontroller-based control provide flexibility, while DIN rail mounting and screw terminal connectivity ensure straightforward installation and maintenance.
Durability and ComplianceManufactured with high-quality ABS plastic and electronic components, the relay withstands rigorous conditions, including wide temperature ranges and high humidity. Its CE certification and robust dielectric strength guarantee safe, reliable performance for industrial users.
FAQs of Phase Control Relays:
Q: How does the Phase Control Relay protect against phase faults and voltage issues?
A: The relay continuously monitors the three-phase supply. If phase failure, incorrect phase sequence, unbalance, or over/under voltage is detected, it triggers a protection mechanism, isolating equipment to prevent damage.
Q: What is the adjustable time delay feature, and how is it used?
A: The relay offers a time delay setting from 0.1 to 10 seconds, allowing users to configure the response timing as per their application requirements. This helps prevent nuisance tripping from transient faults or brief disturbances.
Q: When should the relays LED indications be checked during operation?
A: LED indicators should be monitored regularly during equipment operation. The output LED confirms normal functioning, while the fault LED signals abnormal phase or voltage conditions requiring attention or corrective action.
Q: Where can the relay be installed and what mounting options are available?
A: This relay is designed for industrial settings and can be easily installed using DIN rail mounting. Its compact size fits control panels and distribution boards efficiently.
Q: What process is involved in connecting the relay to a three-phase system?
A: Installation involves wiring the relay to the three-phase supply using screw terminals and ensuring correct connection as per the user manual. The relay automatically begins monitoring and protecting the equipment once powered.
Q: What are the main benefits of using this relay for industrial motor protection?
A: Key benefits include improved equipment lifespan, reduced maintenance due to fewer electrical faults, reliable phase and voltage monitoring, rapid response time under 200 ms, and enhanced operational safety.
